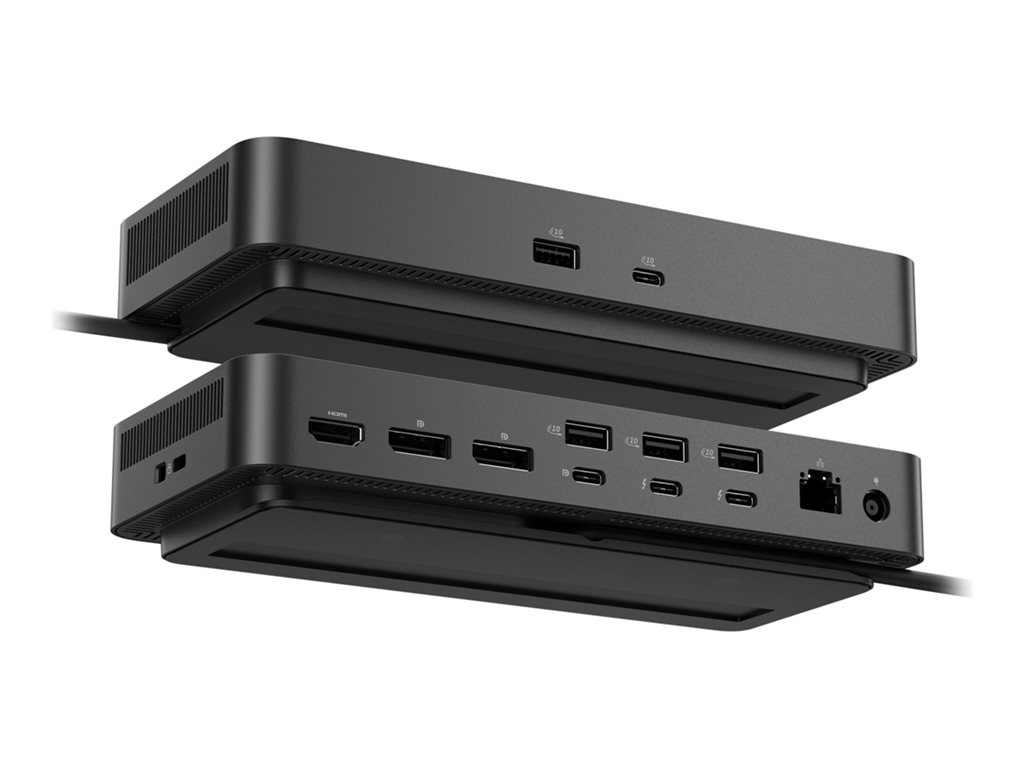

Dell - Dell Pro Thunderbolt 4 Smart Dock SD25TB4
Docking station - Thunderbolt 4 - HDMI, 2 x DP, 2 x Thunderbolt 4, USB-C - 1GbE, 2.5GbE - 180 Watt - BTO - with 3 years Basic Hardware Service with Advanced Exchange after remote diagnosis
Dell
DELL-SD25TB4
0884116493730
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Dell Pro Thunderbolt 4 Smart Dock SD25TB4 - docking station - Thunderbolt 4 - HDMI, 2 x DP, 2 x Thunderbolt 4, USB-C - 1GbE, 2.5GbE |
| Product Type | Docking station |
| Docking Interface | Thunderbolt 4 |
| Video Interfaces | HDMI, 2 x DP, 2 x Thunderbolt 4, USB-C |
| Dimensions (WxDxH) | 8.1 in x 3.5 in x 1.4 in |
| Weight | 20.42 oz |
| Networking | Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Power | Power adapter AC 100-240 V (50 - 60 Hz) 180 Watt Power Provided (19.5 V) |
| Pricing Type | BTO |
| Bundled Services | 3 years Basic Hardware Service with Advanced Exchange after remote diagnosis |
| General | |
| Product Type | Docking station |
| Width | 8.1 in |
| Depth | 3.5 in |
| Height | 1.4 in |
| Weight | 20.42 oz |
| Expansion / Connectivity | |
| Interfaces | 2 x display / video - DisplayPort - 20 pin DisplayPort (1.4) ¦ 1 x display / video - HDMI - 19 pin HDMI Type A ¦ 1 x USB-C 3.2 Gen 2/DisplayPort 1.4 - 24 pin USB-C ¦ 2 x Thunderbolt 4 ¦ 4 x USB 3.2 Gen 2 - 9 pin USB Type A ¦ 1 x network - 2.5G Gigabit Ethernet - RJ-45 ¦ 1 x USB-C 3.2 Gen 2 - 24 pin USB-C |
| Manufacturer Warranty | |
| Bundled Services | 3 years Basic Hardware Service with Advanced Exchange after remote diagnosis |
| Miscellaneous | |
| Cables Included | 1 x Thunderbolt 4 cable - integrated - 2.7 ft |
| Features | Preboot Execution Environment (PXE) support, Kernel Direct Memory Access (DMA) protection, 130W power delivery to Dell systems, 96W power delivery to non-Dell systems, 3 LED indicators, wake on LAN, MAC address pass-through, security lock slot (cable lock sold separately), Dell Power Button Sync, remote firmware updates without a PC, Remote IT management |
| Security Slot Type | Noble Wedge security slot / Kensington security slot |
| Compliant Standards | DisplayPort 1.4, Thunderbolt 4 |
| Pricing Type | BTO |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Power | |
| Power Device | Power adapter |
| Voltage Required | AC 100-240 V (50 - 60 Hz) |
| Power Provided | 180 Watt |
| Voltage Provided | 19.5 V |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 95 °F |
| Video | |
| Max Resolution Details | 4K - 60 Hz (Quad Display) ¦ 5K - 60 Hz (Single Display) ¦ 6K - 60 Hz (Dual Display) ¦ 8K - 60 Hz (Single Display) ¦ 2560 x 1440 - 60 Hz (Quad Display) ¦ 3440 x 1440 - 60 Hz (Triple Display) |
| System Requirements | |
| OS Required | Ubuntu 24.04, Red Hat Enterprise Linux, Google Chrome OS, Windows 10, Windows 11 |
